Class 600 Ball Valve

Class 600 ball valves are designed to the latest ASME B16.34. All the ANSI Class 600 ball valve are tested around 110 bar for high pressure seat test according to the material of valve body. The Face to face dimensions and bore sizes are as per API 6D. Contact us for Class 600 ball valve price.



Contact Us: sales@reliavalve.com



Tags:

Key Specifications / Features

Class 600 ball valve pressure rating is around 100 bar, PN100, 600LB. The seat high pressure test pressure is 110.3 bar for carbon steel body ball valve, shell test is 154 bar.

Class 600 ball valves designed to the latest industrial codes and standards. ANSI Class 600 ball valves are available in a full range of sizes, trim packages.  Class 600 ball valves are for full range of oil, gass, water, petrochemical and general use/service and applications. Class 600 ball valves are provided with reasonable price.

Class is the calculation result of the binding temperature and pressure of a certain metal according to ANSI B16.34 standard.

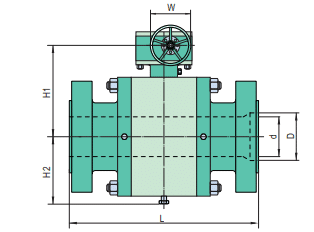

ANSI Class 600 Ball Valve dimensions & Weight:

SIZE BORE SIZE END-TO-END WEIGHT
(mm) (KG)
(mm)  RF RTJ BW RF/RTJ BW
2″ DN50 49 292 295 292 31 24
3″ DN80 74 356 359 356 54 43
4″ DN100 100 432 435 432 99 81
 6″ DN150 150 559 562 559 272 226
 8″ DN200 201 660 664 660 544 444
10″ DN250 252 787 791 787 771 625
12″ DN300 303 838 841 838 997 807
14″ DN350 334 889 892 889 1338 1088
16″ DN400 385 991 994 991 2063 1700
18″ DN450 436 1092 1095 1092 2671 2186
20″ DN500 487 1194 1200 1194 3016 2472
24″ DN600 589 1397 1407 1397 5238 4649
26″ DN650 633 1448 1461 1448 6214 5216
28″ DN700 684 1549 1562 1549 10205 9185
30″ DN750 735 1651 1664 1651 10886 9797
36″ DN900 874 2083 2099 2083 17100 15376



Class 600 Ball Valve Working Pressure  (Material: ASTM A105, A216 WCB, A350 LF2)

Temperature ℃ Working Pressure, in bar
-29/38 102.1
50 100.2
100 93.2
150 90.2
200 87.6
250 83.9
300 79.6
325 77.4

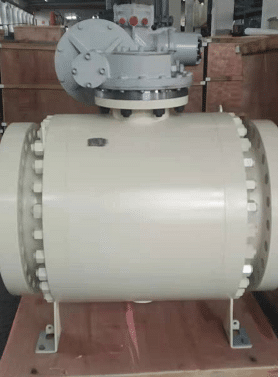

Class 600 Ball Valve, 20 Inch, Weight: 3016 mm

Dimenions (RTJ): 1200 mm, Price: $20000-$50000

ANSI Class 600 ball valve, 20 Inch

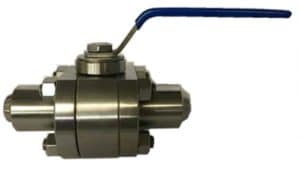

ANSI Class 600 Floating Ball Valve, BW, Price: $100-$600

ANSI Class 600 floating ball valve, BW Ends
