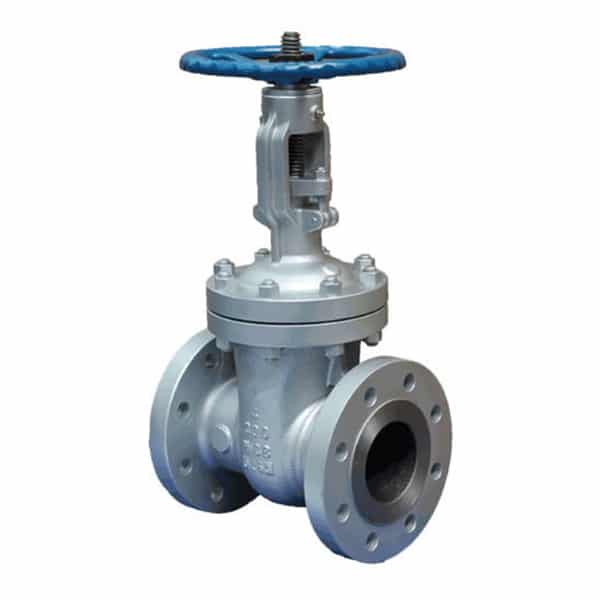

Cast Steel Gate Valve

Cast Steel Gate Valve with flexible wedge gate are made of carbon steel, stainless steel, alloy steel and duplex steel. All API 600 trim no. is available, such as API 600 trim no. 1, 5, 8, 10, 12 etc.



Contact Us: sales@reliavalve.com



Tags:

Key Specifications / Features

Cast steel flexible wedge gate valves are made of carbon steel, stainless steel, alloy steel and duplex steel All API 600 trim no. is available, such as API 600 trim no. 1, 5, 8, 10, 12 etc.  All the Seat faces are hardfaced, ground, and lapped to a mirror finish to ensure the reliable sealing performance.

Cast steel flexible wedge gate valves  are available in sizes from 1/2″ – 48″ and class ratings 150 through 2500. Our cast steel gate valves can be made in Raised Face (RF) and Ring Type Joint (RTJ) to specification ANSI B16.5 and Butt Weld (BW) to specification ANSI B16.25. Other end connections are available on request.

Wedge gate valves offering the ultimate in dependable service for steam, air, gas, oil, oil vapor, and high pressure installations. All have straight-through ports to assure minimum turbulence, erosion, and resistance to flow.

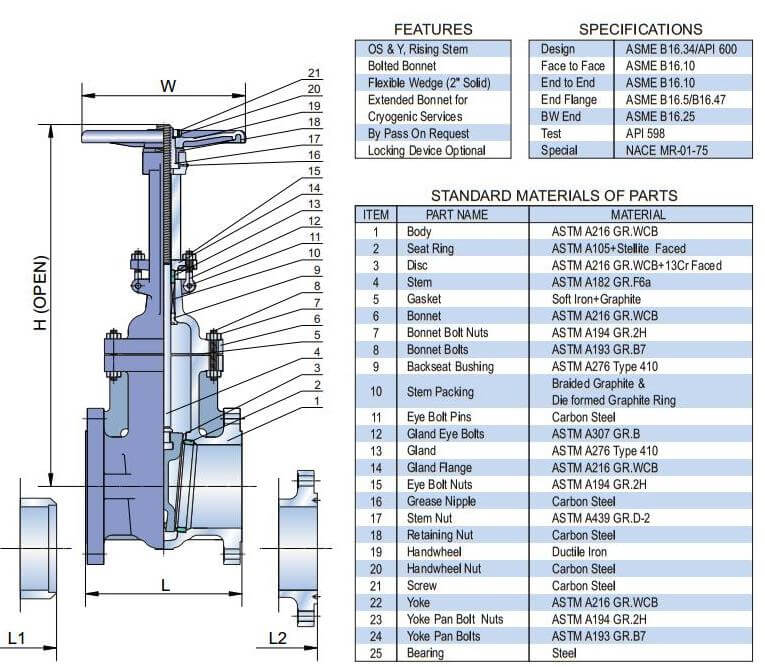

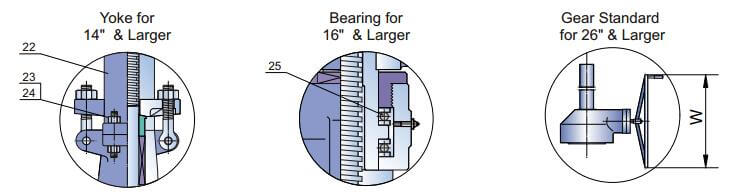

Drawings and Material Specifications

Gate Valve Class 150

Gate Valve Class 150 Dimensions

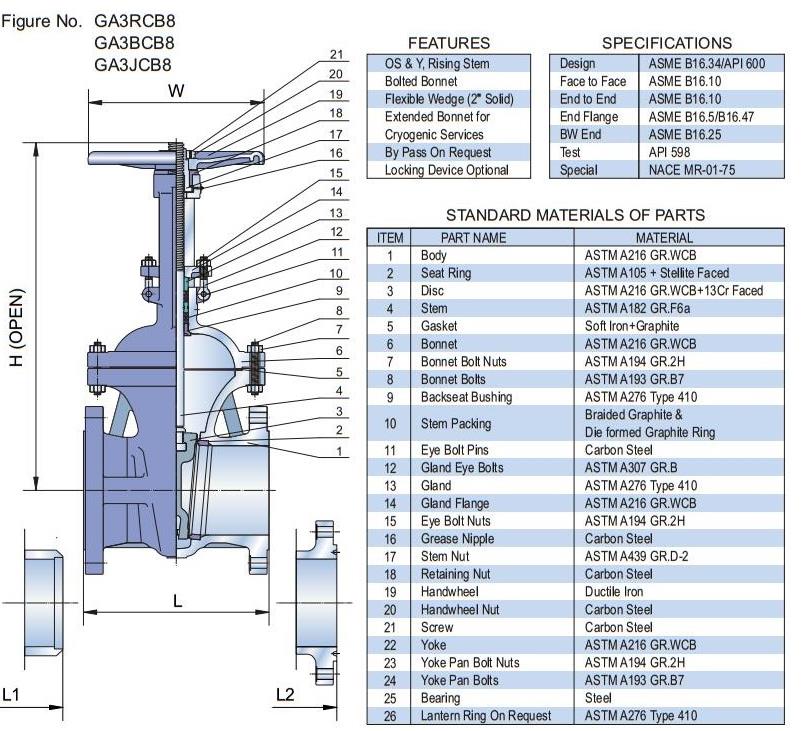

Gate Valve Class 300

Class 300 Gate Valve Dimensions

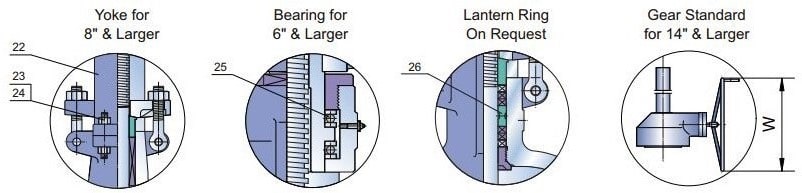

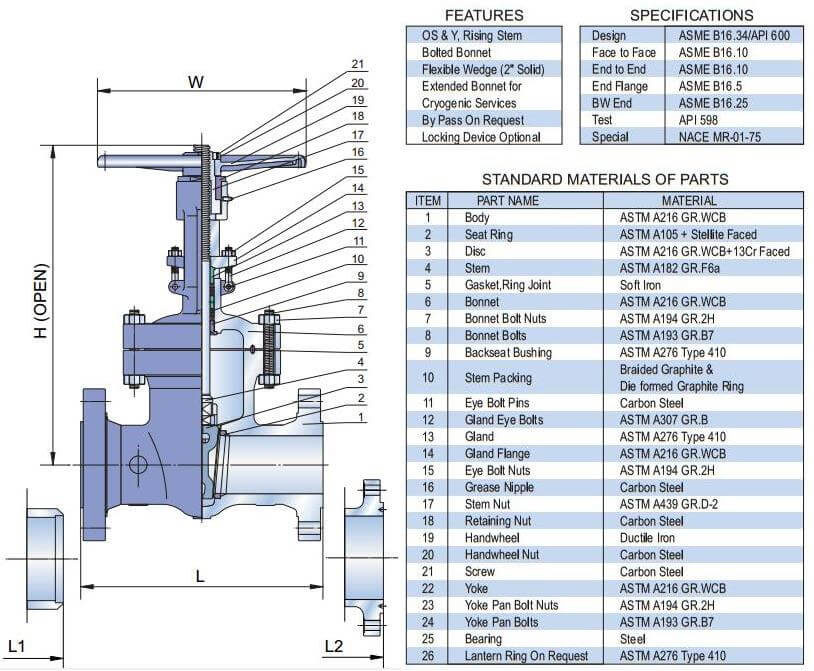

Gate Valve Class 600

Gate Valve Class 600 Dimensions

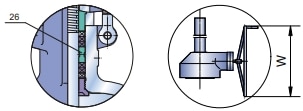

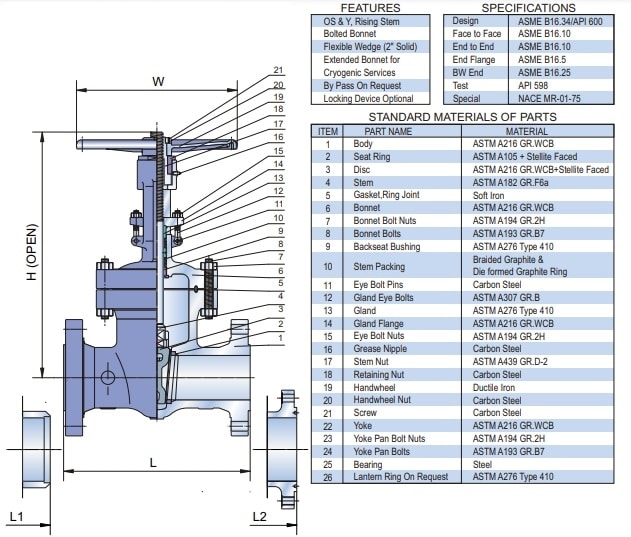

Gate Valve Class 900-2500
