Top Entry Ball Valve with a one-piece body design that allows in-line maintenance. Relia top entry trunnion mounted ball valves are manufactured to ensure bi-directional sealing with two independent floating seats.
Top entry trunnion mounted ball valve feature a double block and bleed, fire safe design and an anti blow-out stem. Top entry trunnion mounted ball valve with seat retraction technique gives the convenience of in-line repair or replace valve internal components without dismantling it from pipe line.

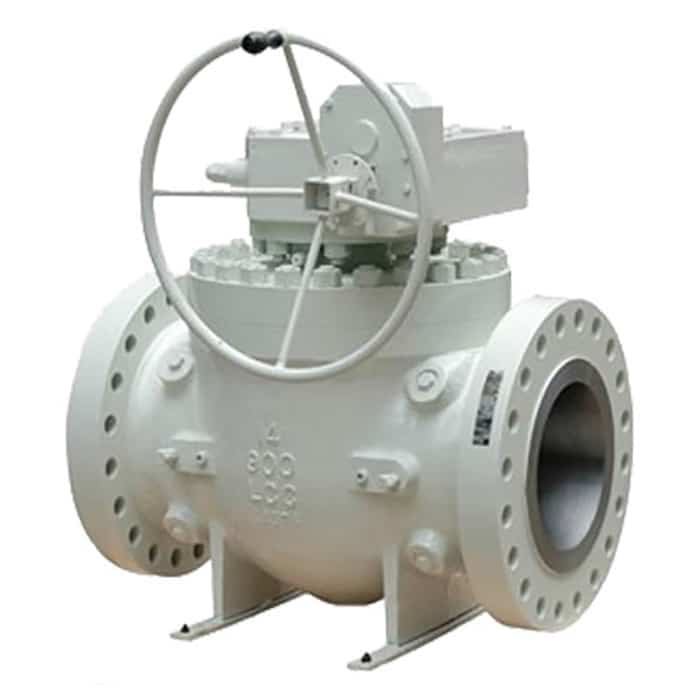

[caption id="attachment_2583" align="alignnone" width="350"] Top Entry Trunnion Mounted Ball Valve[/caption]
The top entry ball valves are available in size 2" ~24" , ANSI class rating 150 to 1500 and temperature ratings of -46 ℃ to 200℃ . All meet the fire safe requirement of BS 6755 and API 6FA.
Top entry ball valves are typically used in process systems where in-line maintenance is preferred over full valve removal. As such, it is common for top entry ball valves to be used in high-pressure applications that require infrequent maintenance, like high integrity pressure protection system (HIPPS) valves.
Advantage & Benefit:
• Self-Adjusting Seats: Compensate for Wear & Temperature Fluctuations
• Spring Loaded Low Pressure Seals
• Pressure Activated Seating
• Built-In Antistatic Feature
• Simplified In-line maintenance/reparability
Relia top entry type ball valve in the pipeline is simple and rapid demolition, maintenance convenient. When the top entry ball valve in the pipeline fails to repair, do not have to remove the valve from the pipeline, just remove the flange bolts and nuts, the valve cover and stem assembly removed from the valve body, and then remove the ball and valve seat assembly.
Usually top entry ball valves are made from casting metal. As top entry ball valve manufacturer, Relia makes additional NDE test on valve body to make sure that there is no defect from the casting process.

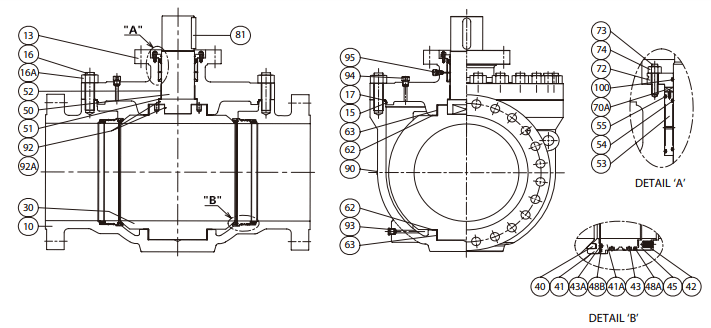

Top Entry Ball Valve Drawing
Bill of Material
No. | PART NAME | Carbon Steel | Low Temp. CS | Stainless Steel |
10 | BODY | A216-WCB | A352 LCB | A351 CF8M |
13 | BONNET | A216-WCB | A352 LCB | A351 CF8M |
15 | BONNET O-RING | FKM | FKM-GLT | FKM |
16 | BONNET BOLT | A193 B7 | A320 L7 | A193 B8M |
16A | BONNET NUT | A194 2H | A194 4 | A194 8M |
17 | BONNET GASKET | INHIBITED FLEXIBLE GRAPHITE | ||
30 | BALL | A182 F316 | ||
40 | SEAT | RTFE OR NYLON OR PEEK | ||
41 | SEAT HOLDER | 316 STAINLESS STEEL | ||
41A | SEAT BACK-UP RING | 316 STAINLESS STEEL | ||
42 | SEAT SPRING | INCONEL X750 | ||
43 | O-RING | FKM | FKM-GLT | FKM |
43A | O-RING | FKM | FKM-GLT | FKM |
45 | SPRING HOLIDER | 316 STAINLESS STEEL | ||
48A | FIRE SAFE SEAL | INHIBITED FLEXIBLE GRAPHITE | ||
48B | FIRE SAFE SEAL | INHIBITED FLEXIBLE GRAPHITE | ||
50 | STEM | 316 STAINLESS STEEL | ||
51 | STEM THRUS BEARING | 316 STAINLESS STEEL+PTFE | ||
52 | STEM BEARING | 316 STAINLESS STEEL+PTFE | ||
53 | STEM BUSH | 316 STAINLESS STEEL+ENP | ||
54 | BUSH INNER O-RING | FKM | FKM-GLT | FKM |
55 | BUSH INNER O-RING | FKM | FKM-GLT | FKM |
62 | THRUST BEARING | 316 STAINLESS STEEL+PTFE | ||
63 | BEARING | 316 STAINLESS STEEL+PTFE | ||
70A | STEM FIRE SAFE SEAL | INHIBITED FLEXIBLE GRAPHITE | ||
72 | STEM COVER | A105N | A350 LF2 | A182 F316 |
73 | STEM COVER BOLT | A193 B7 | A320 L7 | A193 B8M |
74 | STEM COVER NUT | A194 2H | A194 4 | A194 8M |
80 | T-BAR TUBE | A53 GALVANIZED | ||
81 | KEY | ANNSI 1025 | ||
82 | STOP PLATE | 316 STAINLESS STEEL | ||
83 | T-BAR SOCKET | A395+BLACK PAINT | ||
84 | T-BAR BOLT | A193 B8M | ||
85 | STOP BOLT | A193 B8M | ||
87 | WORM GEAR OPERATOR | COMMERCIAL | ||
88 | GEAR MOUNTING BOLT | A193 B7 | A320 L7 | A193 B8M |
89 | GEAR MOUNTING NUT | A194 2H | A194 4 | A194 8M |
90 | NAME PLATE | 316 STAINLESS STEEL | ||
92 | ANTI-STATIC DEVICE | 316 STAINLESS STEEL | ||
92A | ANTI-STATIC PLUNGER | 316 STAINLESS STEEL | ||
93 | DRAIN PLUG | 316 STAINLESS STEEL | ||
94 | VENT VALVE | 316 STAINLESS STEEL | ||
95 | INJECTOR | 316 STAINLESS STEEL | ||
96 | INJECTOR | 316 STAINLESS STEEL | ||
100 | WIPER SEAL | NBR |
Top Entry Ball Valve VS Side Entry Ball Valve
The top entry ball valve is assembled from top. The biggest difference from the side entry ball valve is that top entry ball valves do not need to be removed from the pipe in maintenance. Plus, the less bolted connection brings less leakage paths and lower weight compared to three-piece side entry ball valve.
The face to face dimensions
For Class 150 & 300, they are as the same size in Class 600.
For Class 600-2500, the dimensions as API 6D.
The bore size dimensions are as API 6D.

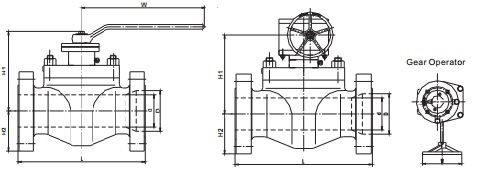

Dimensions & Weight
Top Entry Ball Valve, Class 150-600 Dimensions
Size | D | L | H1 | H2 | W | Weight |
in. | mm | mm | mm | mm | mm | kg |
1-1/2" | 38 | 241 | 209 | 70 | 400 | 30 |
2" | 51 | 292 | 195 | 110 | 400 | 38 |
3" | 76 | 356 | 240 | 110 | 750 | 80 |
4" | 102 | 432 | 280 | 175 | 1000 | 150 |
6" | 152 | 559 | 305 | 195 | *300 | 296 |
8" | 203 | 660 | 400 | 280 | *300 | 438 |
10" | 254 | 787 | 435 | 285 | *500 | 601 |
12" | 305 | 838 | 440 | 320 | *600 | 625 |
14" | 337 | 889 | 505 | 340 | *600 | 1230 |
16" | 387 | 991 | 590 | 410 | *600 | 1535 |
18" | 438 | 1092 | 700 | 445 | *600 | 2135 |
20" | 489 | 1194 | 775 | 510 | *600 | 2640 |
24" | 591 | 1397 | 840 | 640 | *600 | 3960 |
Top Entry Ball Valve, Class 900 Dimensions
Size | D | L | H1 | H2 | W | Weight |
in. | mm | mm | mm | mm | mm | kg |
1-1/2" | 38 | 305 | 215 | 80 | 400 | 40 |
2" | 51 | 368 | 200 | 120 | 750 | 52 |
3" | 76 | 381 | 240 | 130 | 1000 | 87 |
4" | 102 | 457 | 280 | 175 | 1500 | 160 |
6" | 152 | 610 | 350 | 220 | *300 | 385 |
8" | 203 | 737 | 390 | 260 | *400 | 560 |
10" | 254 | 838 | 480 | 310 | *600 | 820 |
12" | 305 | 965 | 538 | 410 | *600 | 1125 |
Top Entry Ball Valve, Class 1500 Dimensions
Size | D | L | H1 | H2 | W | Weight |
in. | mm | mm | mm | mm | mm | kg |
1-1/2" | 38 | 305 | 220 | 90 | 400 | 40 |
2" | 51 | 368 | 205 | 120 | 750 | 60 |
3" | 76 | 470 | 210 | 125 | 1000 | 115 |
4" | 102 | 546 | 245 | 160 | *300 | 194 |
6" | 146 | 705 | 335 | 255 | *400 | 580 |
8" | 194 | 832 | 427 | 340 | *500 | 752 |
10" | 241 | 991 | 502 | 381 | *600 | 1195 |
12" | 289 | 1130 | 533 | 438 | *600 | 2170 |
