Class 1500 Ball Valve

Class 1500 Ball Valves are made of forged steel, to undergo the high pressure service. Class 1500 Ball Valves are available in floating and trunnion mounted ball valve; flanged, socket weld ends, bw ends and thread end.



Contact Us: sales@reliavalve.com



Tags:

Key Specifications / Features

Class 1500 ball valves are high pressure ball valves, it is PN260, 26 MPA. Forged steel is recommanded as valve body, and PEEK or better should be used as seat material.

For Class 1500 ball valves, trunnion mounted ball valves should be adopted for 2″ and bigger; while the the biggest size for Class 1500 floating ball valve should no more than 1-1/2″.

Relia trunnion ball valve with cavity relief pressure when added to the valve pressure rating shall not exceed 133 % of the pressure rating of the valve at its maximum specified design temperature.

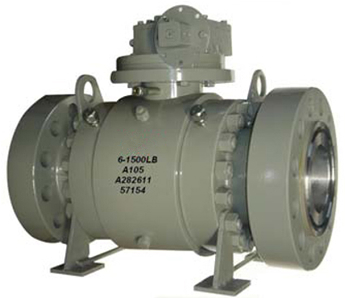

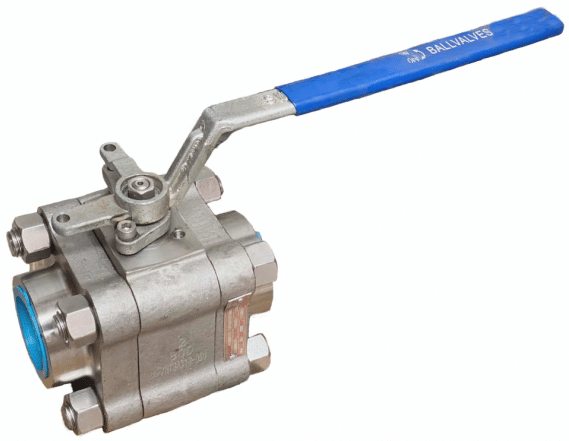

Class 1500 flanged ball valve, 6 Inch                                      Class 1500 ball valve, socket weld

trunnion mounted, Gear Operated                                          floating ball valve, lever operated



Class 1500 flanged ball valve              Class 1500 ball valve, socket weld

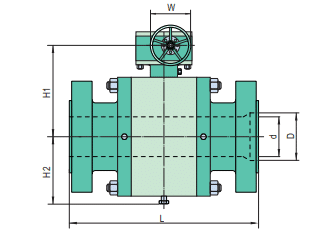

Class 1500 Ball Valve Dimensions & Weight

SIZE BORE SIZE END-TO-END FLG WEIGHTS BW WEIGHTS
F RF RTJ WE
mm Inch mm mm mm mm KG KG
DN25 1″ 25 / 254 / 26 /
DN40 1.5″ 38 / 305 / 40
DN50 2″ 51 368 371 368 54 43
DN80 3″ 76 470 473 470 109 84
DN100 4″ 102 546 549 546 191 127
DN150 6″ 152 705 711 705 541 409
DN200 8″ 203 832 841 832 880 616
DN250 10″ 254 991 1000 991 1555 1088
DN300 12″ 305 1130 1146 1130 2327 682
DN350 14″ 337 1257 1276 1257 2845 1959
DN400 16″ 387 1384 1407 1384 4186 3485
DN450 18″ 438 1537 1559 1537 6482 5191
DN500 20″ 489 1664 1686 1664 9341 7940
DN600 24″ 591 1943 1972 1943 12540 10660



Class 1500 Ball Valve Working Pressure, in Bar (For ASTM A105, A216 WCB, A350 LF2)

Temperature ℃ Working Pressure, in Bar
-29/38 255.3
50 250.6
100 233.0
150 225.4
200 219.0
250 209.7
300 199.1
325 193.6
