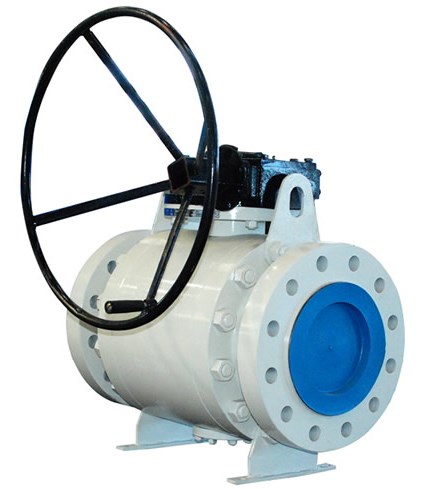

Class 150 Ball Valve
ANSI Class 150 ball valve sizes up to 40 inch.A class 150 ball valve can withstand a pressure rating up to 20 bar during operationat —20 to 100°F (—29 to 38°C), as listed in ASME B16.34. a Class 150 ball valve is rated to approximately 270 PSIG at ambient conditions, 180 PSIG at approximately 400°F, 150 PSIG at approximately 600°F, and 75 PSIG at approximately 800°F. In other words, when the pressure goes down, the temperature goes up.
Contact Us: export@reliavalve.com
Key Specifications / Features
Features
• Split body
• Design Standards: API 6D/ISO 17292 / ASME B16.34 / API 608
• Flanges: ASME B16.5, RF
• Lengths/Face-to-face: ASME B16.10
• Leak test: EN 12266-1 Rate A / API 598
• Stem: Anti-static and proof Blow-out

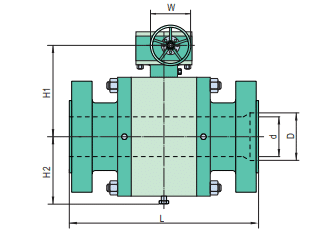

Flanged Class 150 Floating Ball Valve Drawing
Material List
No. | Part Name | Material |
1 | Body | A216 WCB |
2 | Bonnet | A216 WCB |
3 | Ball | A182 F316 |
4 | Seat | RPTFE |
5 | Stem | A182 F316 |
6 | Gasket | 304+Graphite |
7 | Thrust Washer | |
8 | Packing | Graphite |
9 | Stem Packing | Graphite |
10 | Gland | A216 WCB |
11 | Gland Bolt | A193 B7 |
12 | Handle | Carbon Steel |
13 | Stopper | S.S |
14 | Snap Ring | S.S |
15 | Bolt | A193 B7 |
Class 150 Ball Valve Dimensions (API 6D)
Size | Face to face dimenion (L) | Bore (d) (mm) | Weight (Kg) | |||
Inch | DN | RF (mm) | BW(mm) | RTJ(mm) | ||
2″ | 50 | 178 | 216 | 191 | 49 | 12 |
3″ | 80 | 203 | 283 | 216 | 74 | 24 |
4″ | 100 | 229 | 305 | 241 | 100 | 36 |
6″ | 150 | 394 | 457 | 406 | 150 | 94 |
8″ | 200 | 457 | 521 | 470 | 201 | 234 |
10″ | 250 | 533 | 559 | 546 | 252 | 406 |
12″ | 300 | 610 | 635 | 622 | 303 | 596 |
14″ | 350 | 686 | 762 | 699 | 334 | 829 |
16″ | 400 | 762 | 838 | 775 | 385 | 1092 |
18″ | 450 | 864 | 914 | 876 | 436 | 1577 |
20″ | 500 | 914 | 991 | 927 | 487 | 2001 |
24″ | 600 | 1067 | 1143 | 1080 | 589 | 3075 |
Note: The weight for 2″-6″ are for floating ball valves; 8″ and bigger are for trunnion mounted ball valves.
Class 150 Ball Valve Working Pressure, in Bar
(For ASTM A105, A216 WCB, A350 LF2)
Temperature ℃ | Working Pressure, in Bar |
-29/38 | 19.6 |
50 | 19.2 |
100 | 17.7 |
150 | 15.8 |
200 | 13.8 |
250 | 12.1 |
300 | 10.2 |
325 | 9.3 |

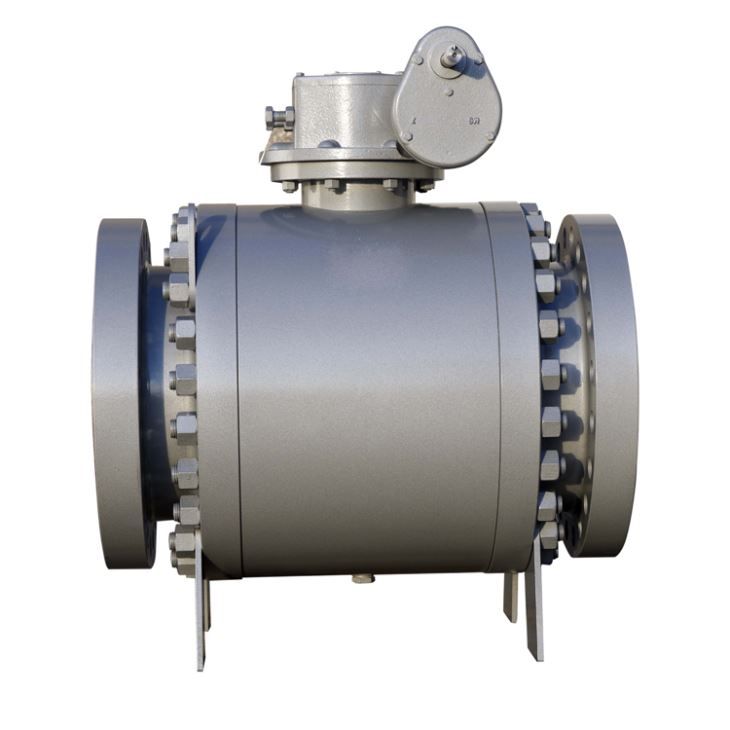

20 Inch Class 150 Ball Valve

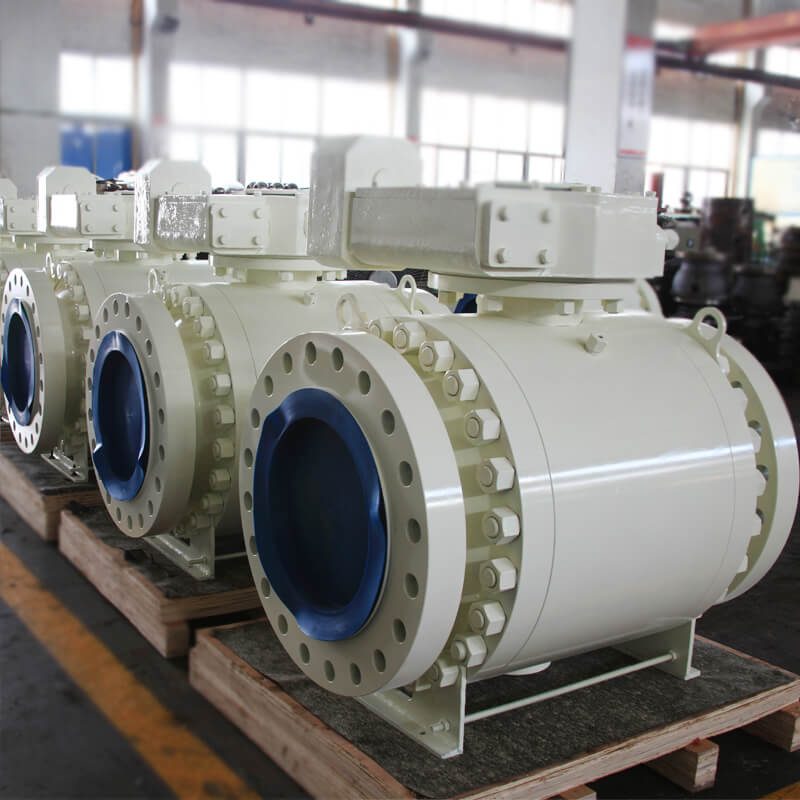

Ball Valve 16 Inch Class 150
Ball Valve 16 Inch Class 150
