WCB Ball Valve
WCB Ball Valve Suppliers, Relia design and manufacture high quality WCB ball valves, made of A216 WCB. Both floating and trunnion ball valves are available in WCB body. WCB body ball valve is 2pc body for size 20 inch and smaller, and 3pc body for bigger sizes. WCB ball valves are bolted bonnet construction.
Contact Us: export@reliavalve.com
Key Specifications / Features
WCB Ball Valve is commonly used in oil and gas industries.
WCB ball valve is manufactured using cast carbon steel. WCB is an acronym for Wrought ( or welded) Carbon (the material used) and grade B steel.
A216 WCB is carbon steel castings for valves, flanges, fittings, or other pressure-containing parts for high-temperature service and of quality suitable for assembly with other castings or wrought-steel parts by fusion welding.
A216 WCB Temperature Range: -29~425°C
Relia WCB Ball Valves are made of finest raw material of WCB.
Availability of WCB ball valves:
Floating and trunnion ball valves
Bolted body
Side entry and top entry
Sizes: 1/2″-40 inch
Pressure Rating: Class 150-1500
A216 WCB Mechanical Performance
| Tensile strength, ksi [MPa] | Yield strength,A min, ksi [MPa] (Note A) | Elongation in 2 in. [50 mm], min, % (Note B) | Reduction of area, min, % |
| 70 to 95 [485 to 655] | 36 [250] | 22 | 35 |

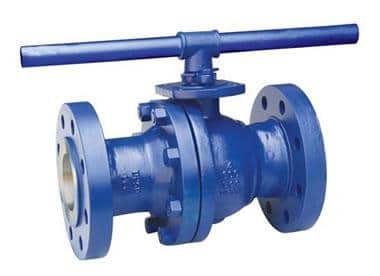

Ball Valve, A216 WCB Body, Flange Ends
WCB Ball Valves, Floating Ball, Wrench Operated
