Aluminum Bronze Ball Valve
Aluminum Bronze (al bronze) Ball Valve is particularly suitable and useful for seawater service where corrosion performance, particularly where its resistance to chloride pitting is excellent. C95800 Nickel Aluminum Bronze ball valve(ni-al-bronze ball valve) with Alloy 400 ball & stem with RPTFE/Nylon seats provide excellent chemical resistance and mechanical resilience.
Contact Us: export@reliavalve.com
Key Specifications / Features
Aluminium bronze ball valve is made of the finest aluminium bronze, with types of NDT test to ensure the quality, all the aluminium bronze ball valve is pressure tested before leaving the factory.
Aluminium bronze is a type of bronze in which aluminium is the main alloying metal added to copper, in contrast to standard bronze or brass. Aluminum Bronzes are a family of copper-based alloys that use iron and nickel in their chemistry – but rely on aluminum as the principle alloying element. Aluminum significantly adds to the strength to the point that it is similar to that of medium carbon steel. The additional advantage is that aluminum bronze also possesses excellent corrosion resistance.
A variety of aluminium bronzes of differing compositions have found industrial use, with most ranging from 5% to 11% aluminium by weight, the remaining mass being copper; other alloying agents such as iron, nickel, manganese, and silicon are also sometimes added to Aluminum bronzes.
Aluminum Bronze Ball Valve Specifications:
| Type | Floating / Trunnion Mounted Ball Valves |
| Size Range: | 1/2″ – 12″ (DN15 – DN300) |
| Design Standards: | API 6D/BS EN ISO 17292 (BS 5351) |
| Pressure Ratings: | Class 150 – 600 |
| End Connections: | Flanged ANSI B16.5 |
| Face to Face: | API 6D / ANSI B16.10 |
| Description: | Anti-blow-out stem, ANti-Static Device |
| Pressure Testing: | API 6D / API 598 / BS EN 12266-1 |
| Application | Sea Water etc. |
Material Specifications
| Option | Body & Bonnet | Ball | Stem |
| A | Nickel Aluminium Bronze ASTM B148 C95800 |
Nickel Aluminium Bronze ASTM B148 C95800 |
Nickel Aluminium Bronze ASTM B150 C63200 |
| B | Nickel Aluminium Bronze ASTM B148 C95800 |
Monel Alloy 400 | Monel Alloy 400 / Alloy K500 |
| D | Bronze ASTM B62 | Nickel Aluminium Bronze ASTM B148 C95800 |
Nickel Aluminium Bronze ASTM B150 C63200 |
| E | Bronze ASTM B62 | Monel Alloy 400 | Monel Alloy 400 / Alloy K500 |
| G | Bronze ASTM B61 | Nickel Aluminium Bronze ASTM B148 C95800 | Nickel Aluminium Bronze ASTM B150 C63200 |
| H | Bronze ASTM B61 | Monel Alloy 400 | Monel Alloy 400 / Alloy K500 |

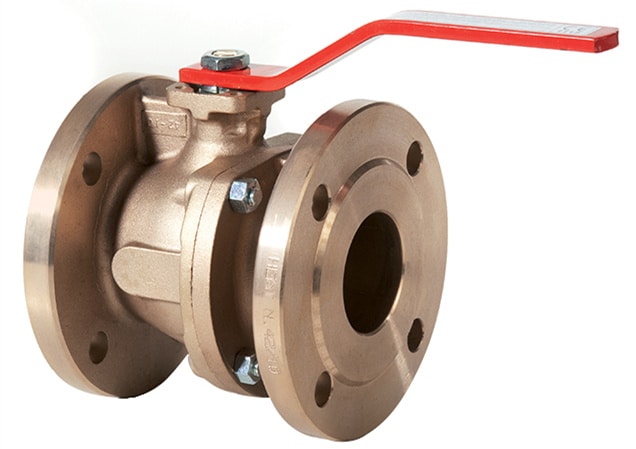

Aluminium Bronze Ball Valve, Flanged, B148 c95800

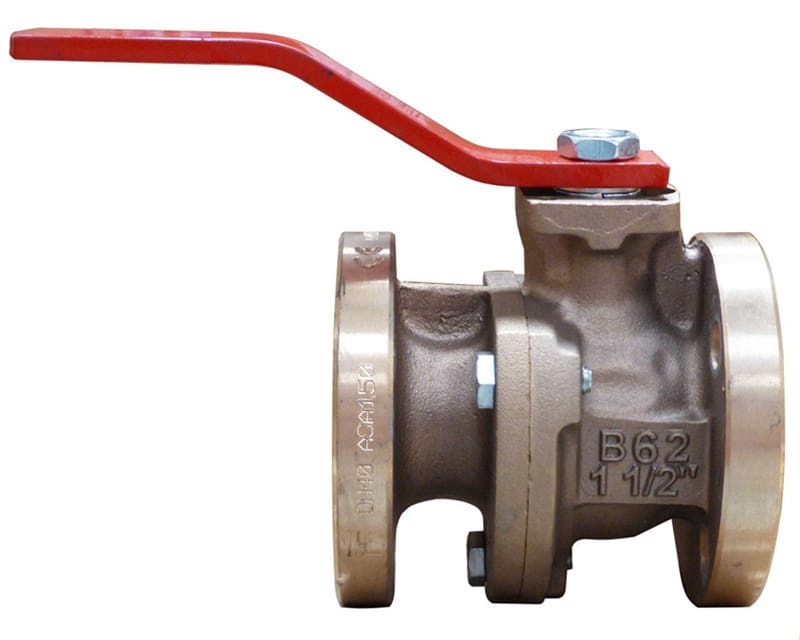

Bronze Ball Valve, ASTM B62, Flanged Ends
