API 6D Ball Valves
API 6D ball valves are designed for reliability and high-performance, and are an excellent choice for shutoff applications in the power, oil & gas and petrochemical industries. API 6D floating ball valve and API 6D trunnion mounted ball valves are available. Ball valve API 6D fully meet the design, manufacture, and testing of API 6D specifications.
Contact Us: export@reliavalve.com
Key Specifications / Features
API 6D ball valves are designed manufactured to provide maximum service life and dependability. All ball valves are full port or reduced port and meet the design requirements of API 6D. API 6D ball valves are available in a complete range of body/bonnet materials and trims. API 6D ball valves are available for the pressure ratings only: Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500, and Class 2500.
API 6D Ball Valves are available as below:

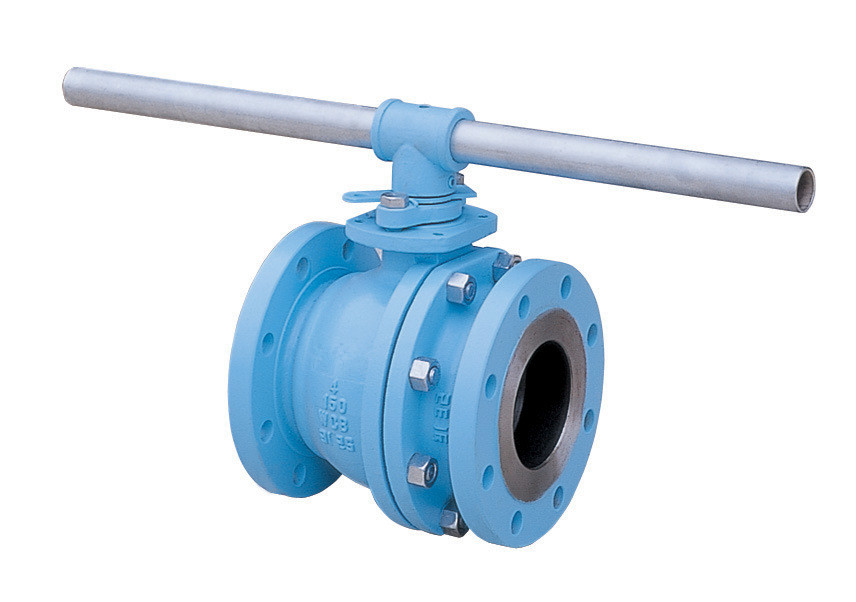

• API 6D trunnion mounted ball valves & Floating ball valve
• Buttweld and flange ends
• Manual and actuated operation
• Blowout proof stem
• Fire resistant construction
• Anti-static design
Specifications:
Design and Manufacture | API 6D |
Wall Thickness | API 6D |
Face-to-Face Dimension | API 6D |
Flange End Dimension | ANSI/ASME B16.5 (1” to 24”) ANSI/ASME B16.47 (26” & up) |
Butt-Weld End Dimension | ANSI/ASME B16.25 |
Inspection & Testing | API 6D/API 598 |
Fire Safe Design | API 607/BS 6755 |
Material | Nace MR 0175 |

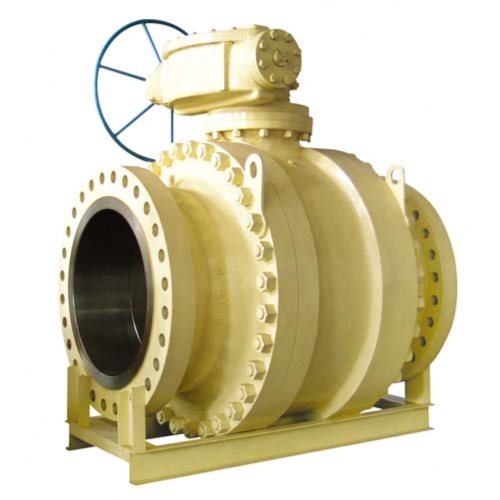

API 6D Trunnion Mounted Ball Valves
API 6D Ball Valve Face to Face Dimensions
API 6D Ball Valve Dimensions Class 150-600
Valve Size | Face to Face Dimentisons (Full Bore Ball Valve and Reduced Bore) | ||||
NPS (Inch) | DN (mm) | RTJ Ends | |||
NPS (Inch) | DN (mm) | Class150 | Class 300 | Class 400 | Class 600 |
2” | 50 | 191 | 232 | 295 | |
2-1/2” | 65 | 203 | 257 | 333 | |
3” | 80 | 216 | 298 | 359 | |
4” | 100 | 241 | 321 | 410 | 435 |
6” | 150 | 406 | 419 | 498 | 562 |
8” | 200 | 470 | 518 | 600 | 664 |
10” | 250 | 546 | 584 | 676 | 791 |
12” | 300 | 622 | 664 | 765 | 841 |
14” | 350 | 699 | 778 | 829 | 892 |
16” | 400 | 854 | 905 | 994 | 854 |
18” | 450 | 930 | 981 | 1095 | 930 |
20” | 500 | 1010 | 1060 | 1200 | 1010 |
22” | 550 | 1114 | 1153 | 1305 | 1114 |
24” | 600 | 1165 | 1241 | 1407 | 1165 |
26” | 650 | 1270 | 1321 | 1461 | 1270 |
28” | 700 | 1372 | 1410 | 1562 | 1372 |
30” | 750 | 1422 | 1537 | 1664 | 1422 |
32” | 800 | 1553 | 1667 | 1794 | 1553 |
34” | 850 | 1654 | 1794 | 1946 | 1654 |
36” | 900 | 1756 | 1895 | 2099 | 1756 |
API 6D Ball Valve Dimensions Class 900-2500
Valve Size | Face to Face Dimentisons (Full Bore and Reduced Bore) | |||
NPS (Inch) | DN (mm) | RTJ Ends | ||
Class 900 | Class1500 | Class 2500 | ||
2” | 50 | 371 | 371 | 454 |
2-1/2” | 65 | 422 | 422 | 514 |
3” | 80 | 384 | 473 | 584 |
4” | 100 | 460 | 549 | 683 |
6” | 150 | 613 | 711 | 927 |
8” | 200 | 740 | 841 | 1038 |
10” | 250 | 841 | 1000 | 1292 |
12” | 300 | 968 | 1146 | 1445 |
14” | 350 | 1038 | 1276 | – |
16” | 400 | 1140 | 1407 | – |
18” | 450 | 1232 | 1559 | – |
20” | 500 | 1334 | 1686 | – |
22” | 550 | – | – | – |
24” | 600 | 1568 | 1972 | – |
26” | 650 | 1673 | – | – |
28” | 700 | – | – | – |
30” | 750 | 1902 | – | – |
32” | 800 | – | – | – |
34” | 850 | – | – | – |
36” | 900 | 2315 | – | – |
API 6D: Specification for Pipeline Valves, is the stadard specifies requirements and gives recommendations for the design, manufacturing, testing and documentation of ball, check, gate and plug valves for application in pipeline systems, application for Petroleum and Natural Gas Industries-Pipeline Transportation Systems-Pipeline.
API 6D is the globally recognized specification that defines the requirements for the design, manufacturing, assembly, testing, and documentation of ball valves and other types of valves for application in pipeline and piping systems for the petroleum and natural gas industries. The API Monogram Program identifies the finest organizations in the world that have demonstrated their ability to manufacture new equipment that conforms to API product specifications. The API approval also requires a Quality Management System that is compliant with API Spec Q1. A thorough audit by API is periodically required to maintain the Monogram.
