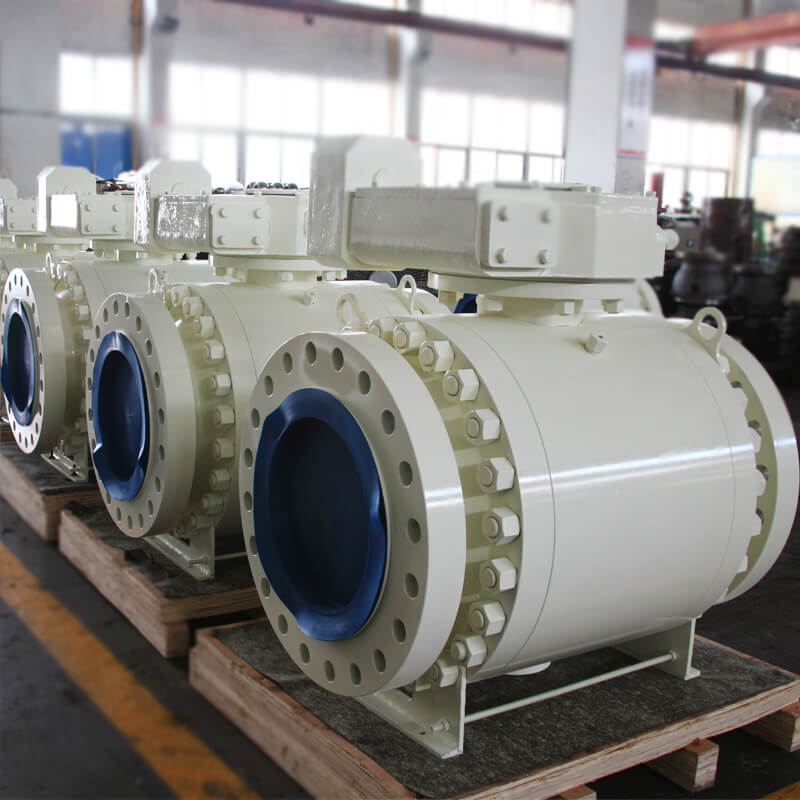

16 Inch Ball Valve
16 Inch Ball Valves are as per API 6D standard. The face to face and bore dimensions meet API 6D. Rich experience in working with oil & gas project. 16 Inch Ball Valve Price, Dimension & Weight. 16 Inch Ball valves are intended to be used as on/off flow control devices and are not to be used to throttle fluid flow. The valves should always be either fully open or fully closed.
Contact Us: export@reliavalve.com
Key Specifications / Features
Type: Trunnion Mounted Ball Valve
Valve Size: 16 inch (DN400)
Pressure Rating: Class 150- 2500
Design Standard: API 6D
Test Standard: API 6D/API 598
Body Material: Carbon Steel, Stainless Steel, Duplex Steel
Seat: Soft Seat/Metal to Metal Seat
Price: $800-$5300
16 Inch Ball Valve Dimensions & Weight
| Pressure Ratings | Dimensions (mm) | Weight (Kgs) |
||
| Flanged RF | But Weld | Flanged RTJ | ||
| Class 150 | 762 | 838 | 775 | 1092 |
| Class 300 | 991 | 991 | 994 | 1440 |
| Class 600 | 991 | 991 | 994 | 2008 |
| Class 900 | 1130 | 1130 | 1140 | 4760 |
| Class 1500 | 1384 | 1384 | 1407 | 4563 |
16 Inch Ball Valve, Class 600, Dimensions: 991 mm, Price: USD10000-30000
