Straight Globe Valve

Straight Globe valve, most commonly used design (standard T-Pattern), providing large pressure drop across the valve. Bolted bonnet / Pressure seal, in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials.

For Straight Pattern Globe valve, the horizontal setting of the seat allows the stem and disk to travel perpendicular to the flow direction of the fluid. Due to its tortuous flow passage this design offers highest resistance to flow among all of the available patterns.


Contact Us:



Key Specifications / Features


Straight pattern /T pattern Globe Valve

Bolted bonnet / Pressure seal

Disc type:
Flat / Parabolic / Needle

Standard features:
OS&Y / Backseat

Optional features:
Lantern ring
Leak-Off & Packing Expulsor
Locking device
Stem extension
Low emission packing
Bellows seal
Zero stem leakage

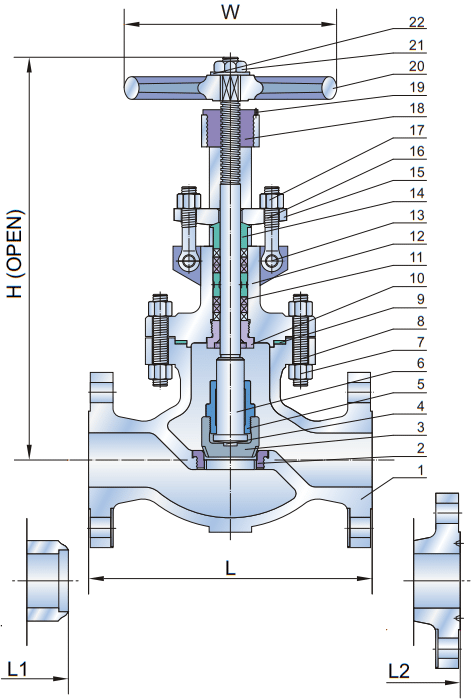

straight globe valve drawing made from straight globe valve manufacturer
Straight globe valve drawing
