Cast Steel Floating Ball Valve

Cast Steel Floating Ball Valve, made of finest raw material, self relieving seat, reliable sealing. Fire safe, anti-static design. Cast steel floating ball valves are made of Cast Steel Carbon steel, Stainless Steel &  Duplex Steel etc.


Contact Us:



Key Specifications / Features

Floating ball valve has a floating ball supported by two valve seats. Under the medium pressure effect, a certain displacement can be generated by the ball itself so as to be pressed onto the seat seal ring at the outlet, guaranteeing tightness at the outlet.


Anti-Static Design, Anti Blow-Out Stem, Fire Safe Design, Self Relieving Seat

Product Range:
Size: 1/2″ – 6″
Pressure: Class 150 -600
Material: Cast Steel Carbon steel, Stainless Steel, Duplex Steel

Standard Specification

Design and Manufacture:API 6D, ASME B16.34, API 608, MSS-SP-72

Face to Face Dimension:ASME B16.10, API 6D

Flange Connection Dimension:ASME B 16.5

BW Connection Dimension:ASME B16.25

Test and Inspection:API 598,API 6D

Fire-Safe Design:API 607/6FA

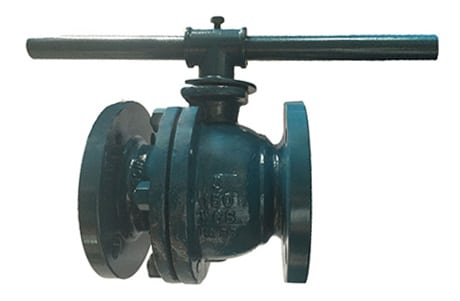

cast steel floating ball valves

Cast steel floating ball valves, WCB body, bolted body,  flanged ends, wrench operated
