24 Inch Ball Valve
24 Inch Ball Valve, 24 inch ball valves are designed according to API 6D, and tested to API 598 standard, all 24 inch ball valves are strictly tested before sending to customer.
Contact Us: export@reliavalve.com
Key Specifications / Features
24 Inch Ball Valve are for use in natural gas, LNG, crude oil, and refined products transmission lines.
24 Inch ball valves are soft seat trunnion mounted ball valves whcih provide excellent leak resistance in all your applications. Trunnion mounted ball valves feature additional support for the ball. This support is in the shape of a shaft and is called a trunnion. The trunnion absorbs any added pressure from the flow, reducing stress on the ball and seats of the valve.
Valve Size: 24 inch (DN600)
Pressure Rating: Class 150- 900
Design Standard: API 6D
Bore: Full Bore/Reduced Bore
Ends: Flanged: ASME B16.5; BW: ASME B16.25
Body: Cast/Forged Steel
Price: $1300-$8500
24 Inch Ball Valve Dimensions & Weight
| Pressure Ratings | Dimensions (mm) | Weight | ||
| Flanged RF | Flanged RTJ | BW | (Kgs) | |
| Class 150 | 1069 | 1080 | 1143 | 3075 |
| Class 300 | 1143 | 1165 | 1143 | 3710 |
| Class 600 | 1397 | 1407 | 1397 | 5373 |
| Class 900 | 1549 | 1568 | 1549 | 5497 |
| Class 1500 | / | 1972 | 7151 | |
The dimensions are face to face dimensions as per API 6D standard.
The weight is for full bore ball valves.
Some of 24 Inch Ball Valves Supplied to Customer

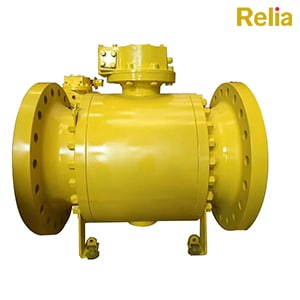

Class 150, 24 Inch Ball Valves
The Class 150, 24 Inch ball valves are made of carbon steel, with SS316 trim, PEEK seat, the body is ENP plated to be suitable for sour natural gas.

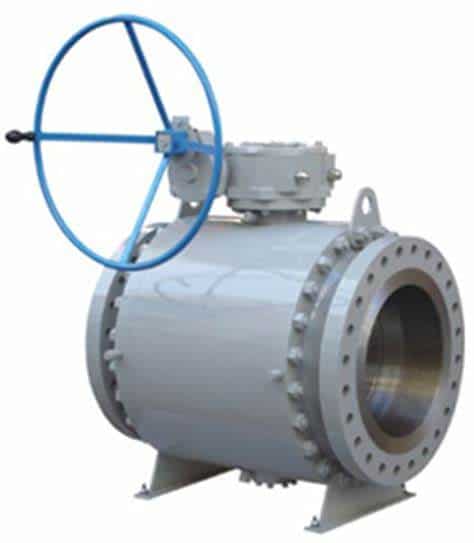

Class 600, 24 Inch Ball Valves
The Class 600, 24 Inch Ball Valves are 3 pc bolted body, double block and bleed, the main material is:
Body: ASTM A105N, Ball: A105+ENP, Stem: A182 F6a, Seat: Nylon
