Class 900 Ball Valve

ANSI Class 900 Ball Valve are designed to ANSI B16.34/API 6D , face to face dimensions are according to ANSI B16.10, End to End dimensions to ANSI B16.5 or ANSI B16.25. Contat us for Class 900 Ball Valve Price.



Contact Us: export@reliavalve.com



Tags:

Key Specifications / Features

Ball Valve ANSI Class 900 (PN 160) is designed with 2 PC or 3 PC structure for oil, gas and water treatment industry.

Design: API 6D/ISO 17292

End to End: ANSI B16.10

End Flange: ANSI B16.5

BW Ends: ANSI B16.25

Feature: Piggable/Bi-directional

Seat: Devlon/PEEK

Rating: ANSI Class 900 (PN 160)

ANSI Class 900 Ball Valve, Flanged, RTJ Ends
ANSI Class 900 Ball Valve, Flanged, RTJ



ANSI Class 900 Ball Valve Dimensions & Weight

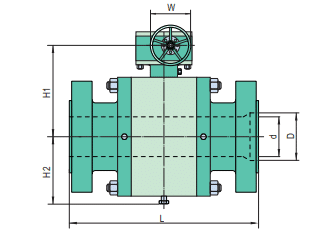

Class 900 ball valve dimensions Class 900 trunnion ball valve dimensions

SIZE BORE SIZE (d) END-TO-END (L) WEIGHT
(mm) (KG)
(mm)  RF RTJ BW RF/RTJ BW
2″ DN50 49 368 371 368 54 43
3″ DN80 74 381 384 381 81 65
4″ DN100 100 457 460 457 145 102
6″ DN150 150 610 613 610 317 254
8″ DN200 201 737 740 737 703 562
10″ DN250 252 838 841 838 839 671
12″ DN300 303 965 968 965 1315 1065
14″ DN350 322 1029 1038 1029 1746 1406
16″ DN400 373 1130 1140 1130 2154 1723
18″ DN450 423 1219 1232 1219 3197 2562
20″ DN500 471 1321 1334 1321 4558 3651
24″ DN600 570 1549 1568 1549 6078 4876
30″ DN750 712 1880 1902 1880 12440 11072
36″ DN900 855 2286 2315 2286 20150 18337

Class 900 Ball Valve Working Pressure, in Bar (For ASTM A105, A216 WCB, A350 LF2)

Temperature ℃ Working Pressure, in Bar
-29/38 153.2
50 150.4
100 139.8
150 135.2
200 131.4
250 125.8
300 119.5
325 116.1
